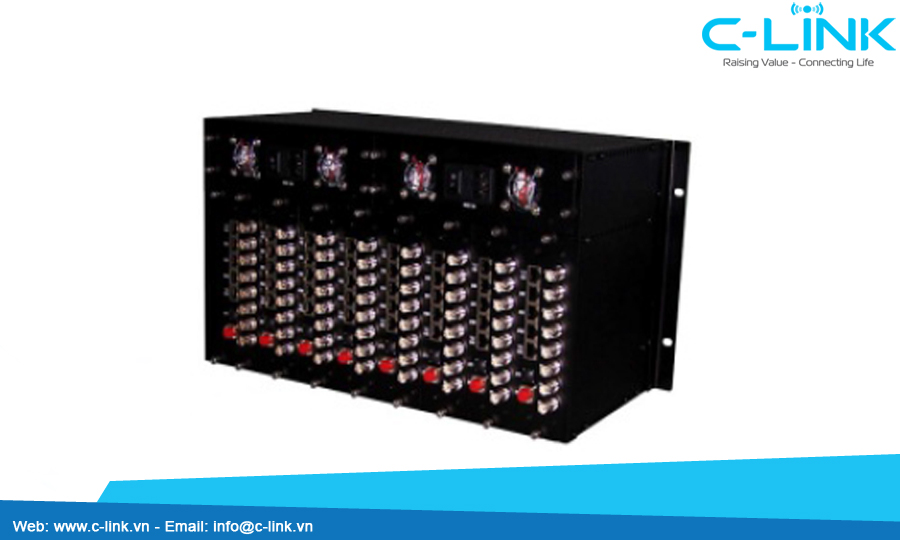

System DesignFiber Optic Video Transmitter & Receiver VDO-64000FT/R can transmission 64-Channel digital composite video over one fiber, Support Coarse Wavelength Division Multiplexing (CWDM) designed for Fixed Cameras.Only support Stand-alone 19 inch 6U Rack. All units of VDO-64000FT/R can not be used by video card style.Only support Single-Mode. VDO-64000FT/R can support FC/PC or ST/PC Optical connector, can be used in Daisy-Chain system (Need to customize). The Transmission distance range according to the Optical Budget. Manufacturer’s standard is: Single-mode 20km. FeaturesSupport Point-to-Point or Daisy-Chain connectionUncompressed Digital Composite Video over one fiberCompatible with all PAL, NTSC,SECAM Video SystemsSingle-Mode Fiber Support for Distances up to 20 kmLED Status Provide Rapid Indication of Operating ParametersNo EMI or RFI and no ground loopsSupport Coarse Wavelength Division Multiplexing (CWDM)Stand alone 19inch 6U RackProduce according to customer’s specifications, providing OEM



Features

1 8-bit encoding, transmission of uncompressed video signals

2 Compatible with NTSC, PAL, SECAM CCTV camera systems and support data protocol RS-232, RS-422, RS-485

3 Supports any video signal

4 Automatic compatible PAL, NTSC and SECAM video system

5 Display power status and a number of other parameters, since it is easier to monitor the operational status of the system

6 continuous transmission, without interference by electromagnetic

7 large capacity optical receiver, wide range, without optical-electrical adjustment.

8 special ASIC design.

9 wide working temperature (from -10 ° C to 65 ° C)

10 Application of the different working environments

11 Hot-swap function

12 separate device or rack-mount adapter attached 19 ’2U

Thông số kĩ thuật

Video
Number of Channels:	64 Channel Video
Video input/output impedance:	BNC 75 Ω
Video input/output Compatibility:	PAL, NTSC,SECAM
Video input/output voltage:	1.0 Volt p-p
Bandwidth:	6.5MHZ
Bit Resolution:	8-Bit Digital Transmission
Differential Gain:	< 1.5%
Differential Phase:	< 1.5 °
Tilt:	< 5%
Signal-to-Noise Ratio(SNR):	> 67 dB
Connectors
Video:	75 Ohm BNC (Gold Center Pin)
Optical:	FC (standard)
Stand-Alone Power:	Screw terminal block
Rack Power:	AC line cord
Electrical & Mechanical
Input Power Requirements:	DC 5V@2A
Power Adapter:	AC 100V~240V
Power Consumption:	< 3W
Stand-Alone Dimensions:	95mm x 70mm x 25mm
Card for 2U Rack Dimensions:	95mm x 70mm x 25mm
Card for 4U Rack Dimensions:	145mm x 170mm x 20mm
Shipping Weight:	1.2kg (include Transmitter & Receiver)
Environmental
Operating Temperature:	-40°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

 Thông tin đặt hàng

VDO-64000FT/R	64 Kênh Video
VDO-64010FBT/R	64 Kênh Video↑ + 1 Kênh Return Data↓
VDO-64010FDT/R	64 Kênh Video↑ + 1 Kênh Duplex Data↑↓
VDO-64010FDET/R	64 Kênh Video↑ + 1 Kênh Duplex Return Data↑↓ + Ethernet
VDO-64100FFT/R	64 Kênh Video↑ + 1 Kênh Simplex Audio↑
VDO-64200FFT/R	64 Kênh Video↑ + 2 Kênh Simplex Audio↑
VDO-64100FDT/R	64 Kênh Video↑ + 1 Kênh Duplex Audio↑↓
VDO-64110FFBT/R	64 Kênh Video↑ + 1 Kênh Simplex Audio↑ + 1 Kênh Return Data↓
VDO-64110FFDT/R	64 Kênh Video↑ + 1 Kênh Duplex Audio↑ + 1 Kênh Duplex Data↑↓
VDO-64110FDDT/R	64 Kênh Video↑ + 1 Kênh Duplex Audio↑↓ + 1 Kênh Duplex Data↑↓
