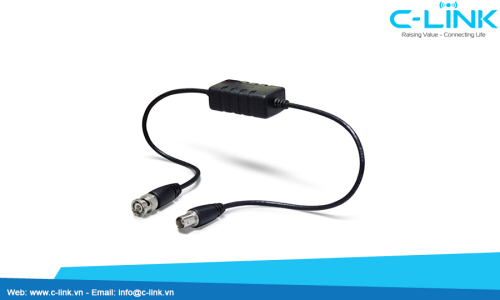

Thiết Bị Chống Sét Và Chống Nhiễu Cho 1 Kênh Video ZHT (VSP1201XP) C-LINK Phân Phối
Description:
VSP1201XP is a high-efficient and high-reliable ground loop isolator for video signal over coaxial cable, which needn’t power. Features strong lighting-proof function, which can effectively solve the interference caused by different ground potential during the transmission of the signal. Besides, it can also be exempt from being damaged by reaction and operation of the over-voltage and the discharging of the static electricity, restore the standard video signal, pick up clear video picture, effectively eliminate the split, interference and scrolling of the picture. It is widely used in various complicated system in security surveillance.
Power requirement: No power required, easy installation
Functions: Minimize the common-mode interference and high frequency interference of the signal distortion caused by ground loop video, effectively eliminate the split, interference and scrolling of the picture.
Isolation Voltage: 800V
Safety: interference minimizing, efficient lightning-proof, free from static electricity, transient surge protection for line;
Design; ABS plastic injection-wide, waterproof, compact
Installation: Double-end cable, no extra connection cables, easy to installation.
| Projects | Description | |
| Properties | Insertion loss | 0.5dB |
| Frequency response | 75Ω | |
| Input resistance | 75Ω | |
| Output resistance | >60dB | |
| Isolation voltage | 800V (Minimum) | |
| Insulation resistance | 100MΩ | |
| Protection | ESD | 1a Touch Discharge electric 3-Level 1b Air Discharge electric 3-Level 1b Air Discharge electric 3-Level |
| Reliability | Surge protection | 4KV 10/700us,Implementation Standard：IEC6100-4-5 |
| Property | Size (L×W×H) | Body: 55mmx30mmx22mm; total length: 550mm |
| Shell | ABS Plastic | |
| Color | Black | |
| N.W. | 77g | |
| Environment | Working temperature | -22℃-50℃ |
| Storage temperature | -40℃-80℃ | |
| Humidity | 0%-95% | |
